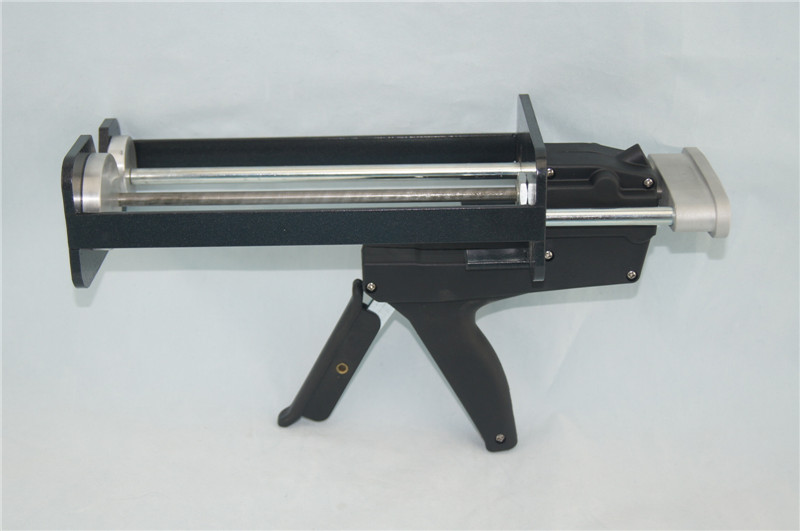

CG900-2-1 Two-component Manual Caulking Gun
900ml 2:1 Manual Iron Caulking Gun Description: CGI900-2-1 Cartridge: 600ml X 300ml Clip-together Cartridge Weight: 2KG Material: nylon or ABS frame,carbonised rods Package: 10 boxes/carton Carton Siz
Обзор
900ml 2:1 Manual Iron Caulking Gun
Description:
CGI900-2-1

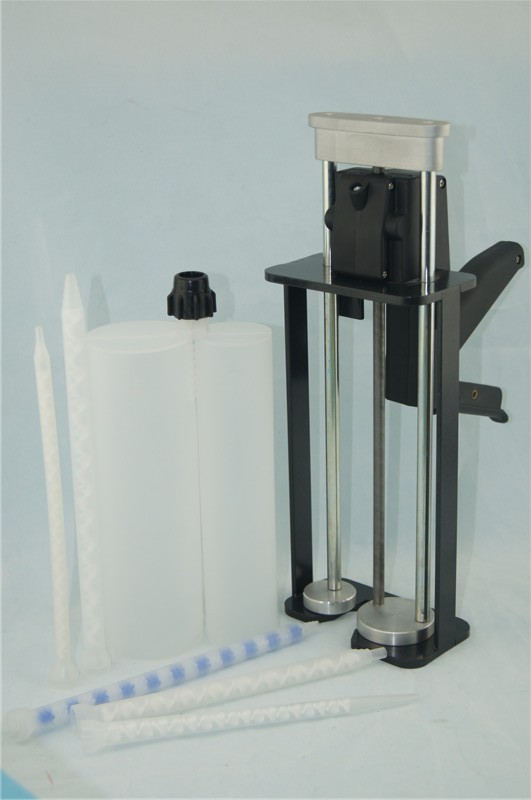

Cartridge: 600ml X 300ml Clip-together Cartridge
Weight: 2KG
Material: nylon or ABS frame,carbonised rods
Package: 10 boxes/carton
Carton Size: 680mm×450mm×450mm
Instructions:
1. Open the swfit of handle and then pull the rack to reach the maximum.
2. Put chemical material into two-component cartridge.
3. Promote the trigger to make the chemical material come out smoothly from the cartidge
4. After using, put the rack back to the original location.
5. Remove the cartridge, then to repeat the above operation.
Our Service:
Online fast professional technical advice
Best quality products.
Best after-sales Service
Complaint Service
OEM produce, if none of our products meet your requirement, pls contact us for customizing.
Особенности
Our plastic caulking guns have 2 strong points
1. Long service life: Life duration is 5 times more than iron caulking gun.
2 High-efficiency:The force is up to 450kg-500kg and save your strength 5 times more than common iron caulking gun.
Brake Release
Push the brake handle forward to release the drive rod and to remove the piston pressure.
Cleaning & Maintenance
It is very important to keep the drive rod clean and to oil it frequently in order to ensure a better function.
Recover the Movement of the Piston
Symptom: Back-lash of the brake
Remedy: Turn the adjusting screw clockwise the whole way down until the drive rod can be moved back and forth.
To eliminate the back-lash, which may occur after many operations, follow the instructions below:
Turn the adjusting screw counter-clockwise until the drive rod can be exactly moved back and forth.
Галерея
Применение
Suggested Use in Fields
· Construction, Concrete, Industry, Hardware, Anchor&Fastener, Waterproof
· Auotmative, Railway, Tunnel, Appliances, Aerospace, Maintenance and Repair
· Marine, Floor, Chemical, Paint etc.
Suggested Use Materials
· Epoxies, Acrylics, Silicone Sealants, Resins, Polyesters.
· Epoxy Acrylates, Hybrids, Urethanes.
· Polysulfides, foams, Polymers, polyureas
